treuil de remorquage électrique 12v 24v
12 et 24 V, 12000 Lbs ( 5443 Kg)
Livraison en Tunisie selon disponibilité, destination et poids volumétrique. Grand Tunis : express jour même après confirmation à 35 TND HT ; livraison standard à partir de 10 TND HT, ou gratuite dès 300 TND HT de commande. Voir les conditions

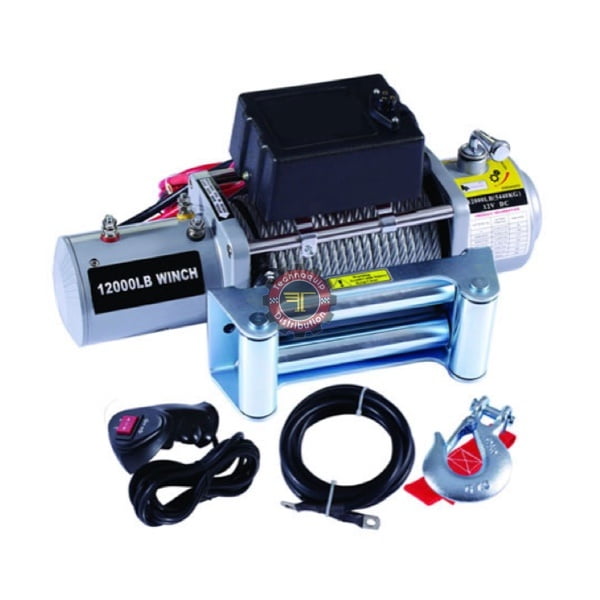

Treuil de remorquage électrique 12 et 24 V
Treuil de remorquage électrique| Rated line pull | 12000lbs(5443kgs) single line |
| Motor | 6.6hp/4.8kw (12V) |
| 4.0hp/3.0kw(24V) Series wound | |
| Control | Remote switch, 12ft (3.7m) lead |
| Gear reduction ratio | 187.2:1 |
| Clutch | Sliding ring gear |
| Breaking action | Two-way, Automatic in-the-drum |
| Cable | 23/64" of 94ft diameter (9.1mmx28m) |
| Main body | Sealed |
| Fairlead | 4-way roller fairlead |
| Gear Train | 3-stage planetary |
| Wireless remote control | Optional |
| Battery | Recommended 650CCA minimum for winching |
| Battery leads | 2 gauge, 72" (183mm) |
| Finish | Dark grey powder coat |
| Overall dimension | 21.1"x6.3"x8.6" (537mmx160mmx218mm) |
| Mounting bolt pattern | 254mmx114.3mm |
| Packing size | 57xx19x34.5cm 1PCS/CTN |
| Weight | N.W. 37kg, G.W. 39kg |
| Line pull (lbs/kgs) | Line speed (fpm/mpm) DC12V | Line speed (fpm/mpm) DC24V | Motor current (A) DC12V | Motor current (A) DC24V |
| 0/0 | 33.3/10.3 | 35/10.8 | 85 | 50 |
| 4000/1810 | 16.8/5.1 | 18.5/5.6 | 158 | 136 |
| 6000/2720 | 12.8/3.9 | 14.4/4.4 | 231 | 170 |
| 8000/3630 | 10.1/3.1 | 11.5/3.5 | 302 | 210 |
| 10000/4540 | 8.8/2.7 | 10/3.1 | 371 | 240 |
| 12000/5440 | 7.6/2.3 | 8.9/2.7 | 450 | 280 |
| 12300/5590 | 0/0 | 0/0 | 200 | 100 |
| Layer of cable | Rated line pull per layer (lbs/kg) | Cable capacity per layer (ft/m) |
| 1 | 12000/5443 | 17/4.8 |
| 2 | 9210/4170 | 41/12 |
| 3 | 8030/3840 | 71/21 |
| 4 | 6894/3125 | 82/25 |
| courant | 24v or 12v |
| Marques | TOHO |
