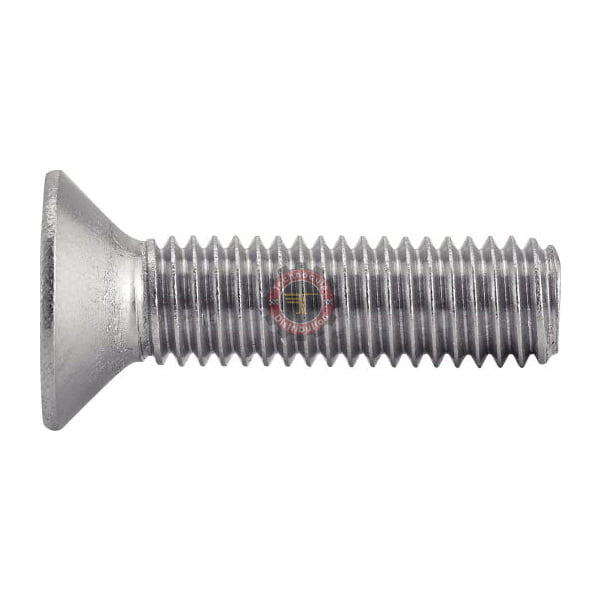

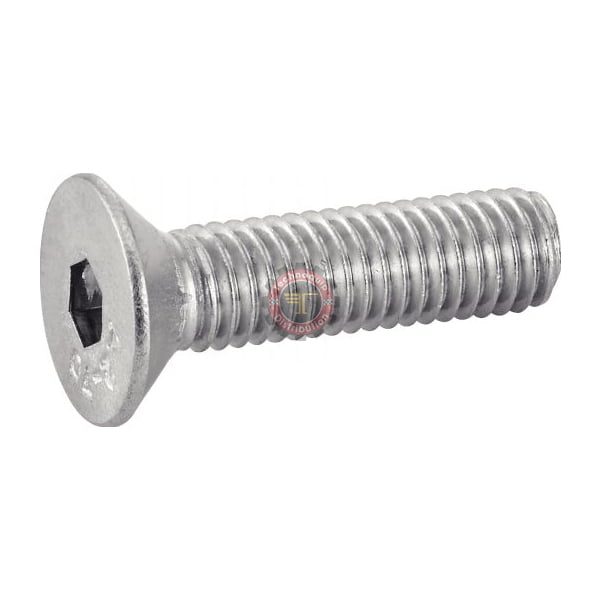

Vis à métaux TFC M8 Inox A2-ISO 10642
Plage de prix : د.ت 50,000 à د.ت 244,000conditionnement HT
- Conditionnement : vendu par paquet de 200 pièces 8X10mm & 8X12mm – 100 pièces de 8X14mm jusqu’a 8X60mm puis 50 pièces
- Matière : Inox A2
- Norme : ISO 10642 – (similar DIN 7991)
Caractéristique Vis à métaux TFC M8 Inox A2-ISO 10642

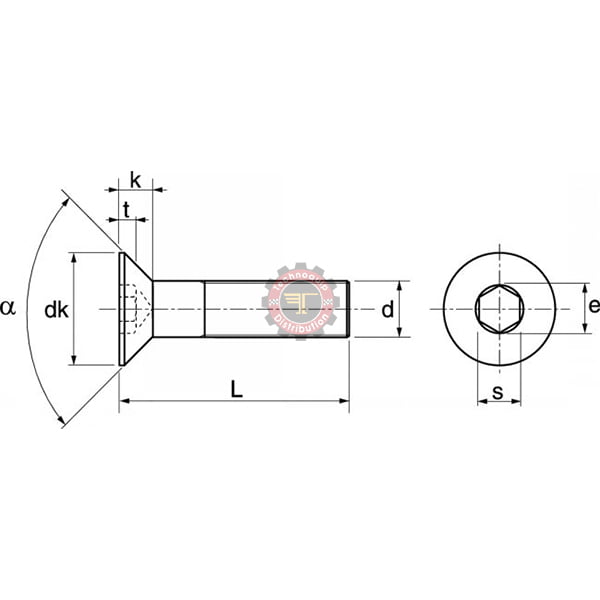

| d(mm) | d X L(mm) | dk(min)(mm) | dk(max)(mm) | k(mm) | t(min)(mm) | e(mm) | s(mm) | Pas(mm) | Angle (°C) |
| M 8 | 8X10 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X12 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X16 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X20 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X25 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X30 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X40 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X50 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X60 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X70 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X80 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
| M 8 | 8X100 | 15,24 | 17,92 | 4,96 | 3 | 5,72 | 5 | 1,25 | 90 - 92 |
Vis à métaux TFC M8 Inox A2-ISO 10642

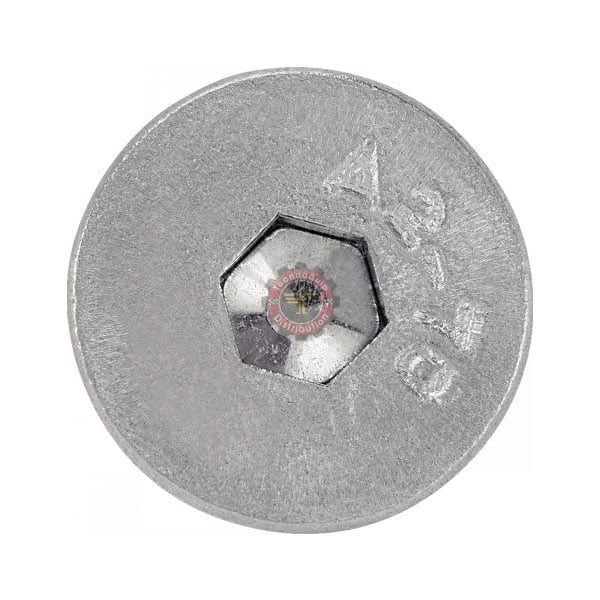

- Vis à Métaux Tête Fraisée Six Pans Creux Inox A2 – ISO 10642
- Cette vis peut être associée à un écrou hexagonal DIN 934 et à une rondelle plate moyenne de type M NFE25513
| Marque | |
|---|---|
| dimensions |
18X100 mm ,8X10 mm ,8X12 mm ,8X16 mm ,8X20 mm ,8X25 mm ,8X30 mm ,8X40 mm ,8X50 mm ,8X60 mm ,8X70 mm ,8X80 mm |
