Vis à métaux TFC M(10-12-16-20) Inox A2-ISO 10642
Plage de prix : د.ت 80,000 à د.ت 1.100,000conditionnement HT
- Matière : Inox A2
- Norme : ISO 10642 – (similar DIN 7991)
Caractéristique Vis à métaux TFC M(10-12-16-20) Inox A2-ISO 10642

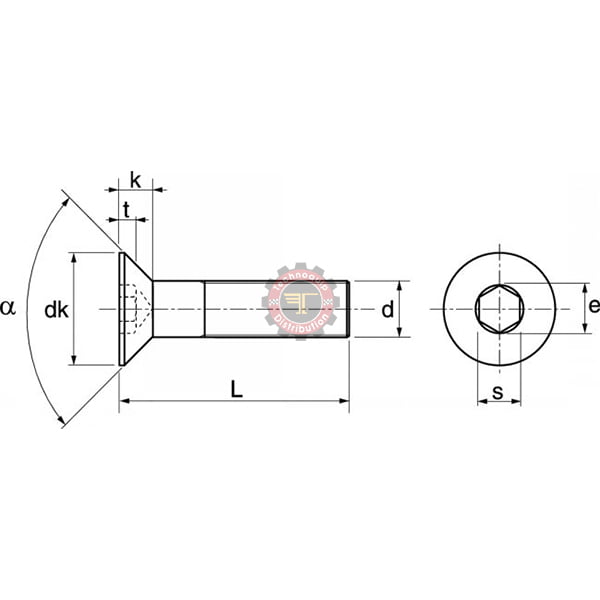

| d(mm) | d X L(mm) | dk(min)(mm) | dk(max)(mm) | k(mm) | t(min)(mm) | e(mm) | s(mm) | Pas(mm) | Angle (°C) |
| M 10 | 10X20 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X25 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X30 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X40 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X50 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X60 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X70 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X80 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 10 | 10X100 | 19,22 | 22,40 | 6,2 | 3,6 | 6,86 | 6 | 1,5 | 90 - 92 |
| M 12 | 12X30 | 23,12 | 26,88 | 7,44 | 4,3 | 9,14 | 8 | 1,75 | 90 - 92 |
| M 12 | 12X40 | 23,12 | 26,88 | 7,44 | 4,3 | 9,14 | 8 | 1,75 | 90 - 92 |
| M 12 | 12X50 | 23,12 | 26,88 | 7,44 | 4,3 | 9,14 | 8 | 1,75 | 90 - 92 |
| M 12 | 12X60 | 23,12 | 26,88 | 7,44 | 4,3 | 9,14 | 8 | 1,75 | 90 - 92 |
| M 12 | 12X70 | 23,12 | 26,88 | 7,44 | 4,3 | 9,14 | 8 | 1,75 | 90 - 92 |
| M 12 | 12X80 | 23,12 | 26,88 | 7,44 | 4,3 | 9,14 | 8 | 1,75 | 90 - 92 |
| M 12 | 12X100 | 23,12 | 26,88 | 7,44 | 4,3 | 9,14 | 8 | 1,75 | 90 - 92 |
| M 16 | 16X40 | 29,01 | 33,60 | 8,8 | 4,8 | 11,42 | 10 | 2 | 90 - 92 |
| M 16 | 16X50 | 29,01 | 33,60 | 8,8 | 4,8 | 11,42 | 10 | 2 | 90 - 92 |
| M 16 | 16X60 | 29,01 | 33,60 | 8,8 | 4,8 | 11,42 | 10 | 2 | 90 - 92 |
| M 16 | 16X70 | 29,01 | 33,60 | 8,8 | 4,8 | 11,42 | 10 | 2 | 90 - 92 |
| M 16 | 16X80 | 29,01 | 33,60 | 8,8 | 4,8 | 11,42 | 10 | 2 | 90 - 92 |
| M 20 | 20X40 | 36,05 | 40,32 | 10,16 | 5,6 | 13,71 | 12 | 2,5 | 90 - 92 |
| M 20 | 20X50 | 36,05 | 40,32 | 10,16 | 5,6 | 13,71 | 12 | 2,5 | 90 - 92 |
| M 20 | 20X60 | 36,05 | 40,32 | 10,16 | 5,6 | 13,71 | 12 | 2,5 | 90 - 92 |
| M 20 | 20X80 | 36,05 | 40,32 | 10,16 | 5,6 | 13,71 | 12 | 2,5 | 90 - 92 |
| M 20 | 20X100 | 36,05 | 40,32 | 10,16 | 5,6 | 13,71 | 12 | 2,5 | 90 - 92 |
Vis à métaux TFC M(10-12-16-20) Inox A2-ISO 10642

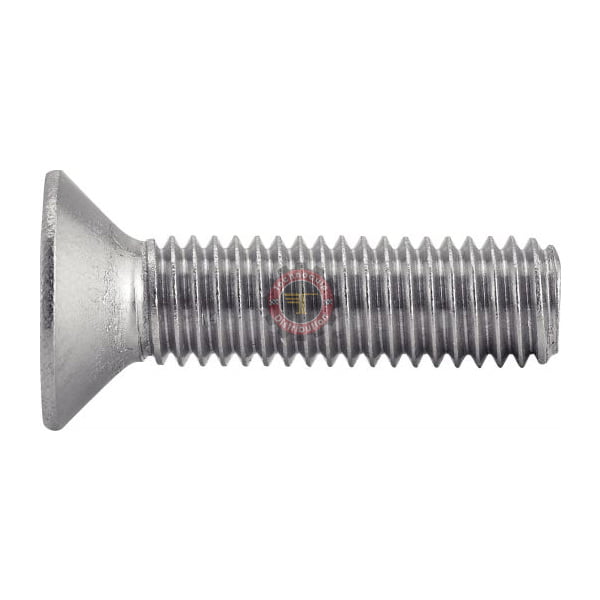

- Vis à Métaux Tête Fraisée Six Pans Creux Inox A2 – ISO 10642
- Cette vis peut être associée à un écrou hexagonal DIN 934 et à une rondelle plate moyenne de type M NFE25513
| Marque | |
|---|---|
| dimensions |
10X100 mm ,10X20 mm ,10X25 mm ,10X30 mm ,10X40 mm ,10X50 mm ,10X60 mm ,10X70 mm ,10X80 mm ,12X100 mm ,12X30 mm ,12X40 mm ,12X50 mm ,12X60 mm ,12X70 mm ,12X80 mm ,16X40 mm ,16X50 mm ,16X60 mm ,16X70 mm ,16X80 mm ,20X100 mm ,20X40 mm ,20X50 mm ,20X60 mm ,20X80 mm |
