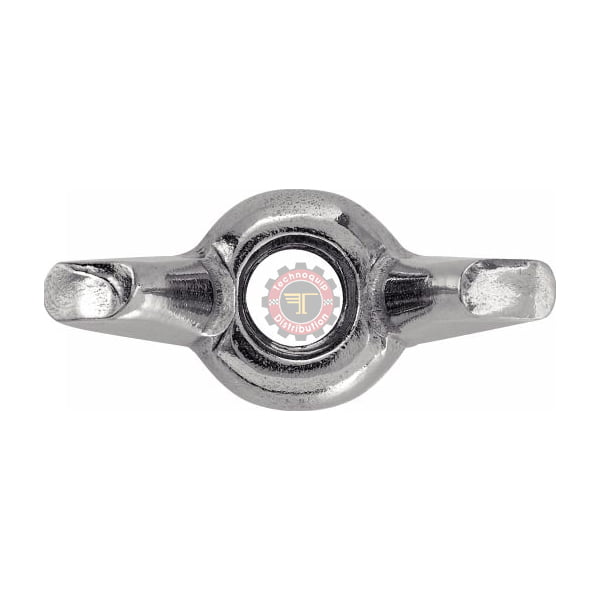

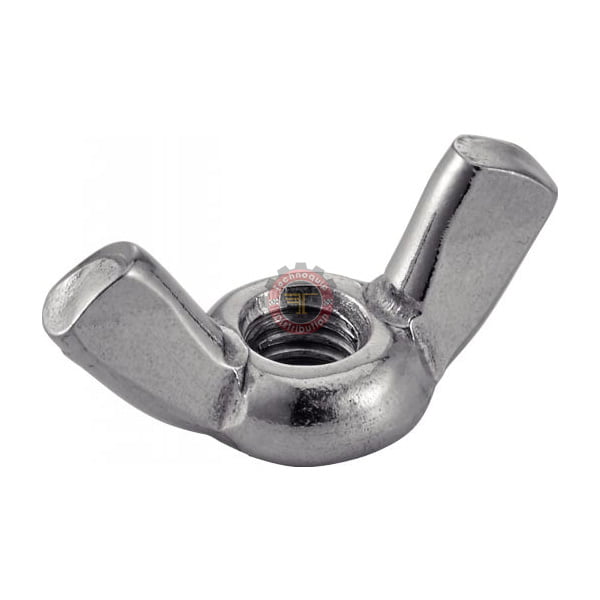

Écrou papillon Inox A2
د.ت 50,000 – د.ت 144,000 HT
- Conditionnement : Paquet de 200 pièce jusqu’à M6 – 100 pièces jusqu’à M10 – 50 pièces jusqu’à M14
- Ecrous à Oreilles Forme Américaine
- Matière :Inox A4
- Norme :(similar DIN 315)

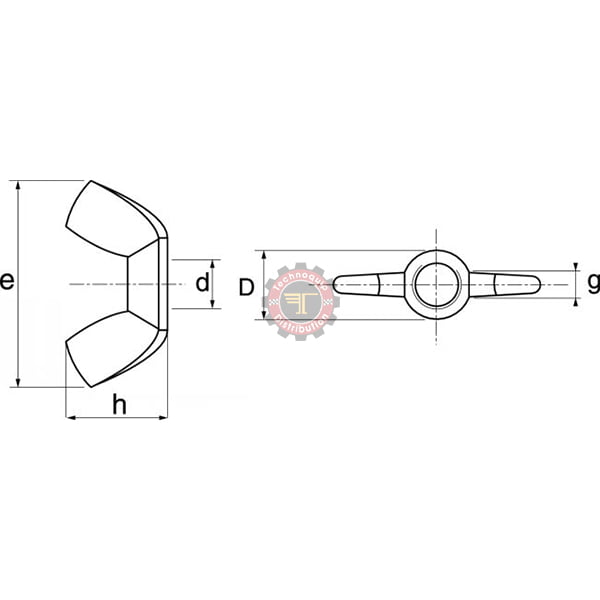

Caractéristique Écrou papillon Inox A2
| d nominal (mm) | Pas (mm) | D(mm) | e(mm) | h(mm) | g(mm) |
| M 4 | 0,7 | 7,8 | 18,5 | 8,8 | 2 |
| M 5 | 0,8 | 9,5 | 22 | 10,5 | 2,6 |
| M 6 | 1 | 10,5 | 25 | 12,2 | 3 |
| M 8 | 1,25 | 13,5 | 30,3 | 14,8 | 3,3 |
| M 10 | 1,5 | 15,3 | 35,3 | 17,3 | 4 |
| M 12 | 1,75 | 20,5 | 47,5 | 22,5 | 5 |
Écrou papillon Inox A2
Cet écrou à oreilles peut être associé à une vis à métaux DIN 933 ou à une vis à métaux DIN 931 et à une rondelle plate moyenne type M NFE 25513-25514
| Marque | |
|---|---|
| dimensions |
M10 ,M12 ,M4 ,M5 ,M6 ,M8 |
