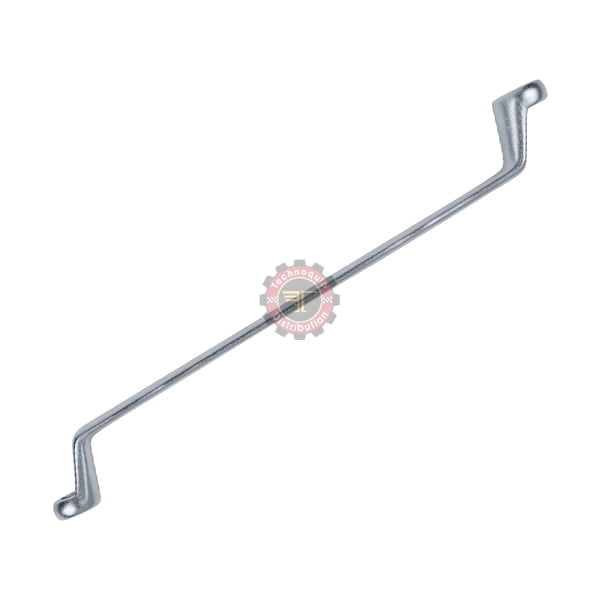

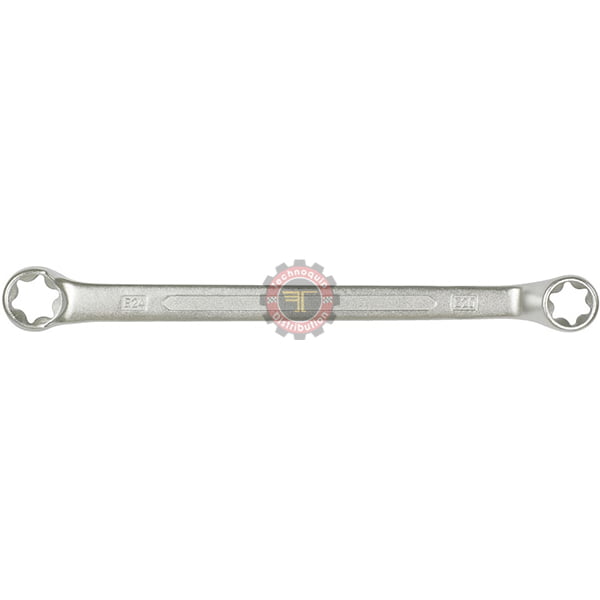

Clé polygonale contre-coudée TORX®
د.ت 55,000 – د.ت 82,000 HT
- Matériel1 : acier au chrome vanadium le plus fin, finition mate
- profil1 : E-TORX®
- Forme clé : décalage

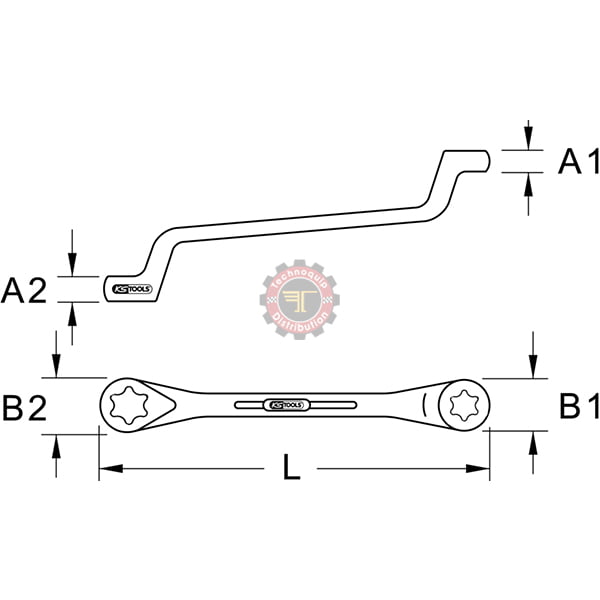

Dimension clé polygonale contre-coudée
| N° d'article | Taille de la clé en Torx E | Hauteur de tête (A1) | Hauteur de tête (A2) | Cote extérieure B1 | Cote extérieure B2 | Longueur totale L en mm |
| 911.0361 | E6 x E8 | 5.5 | 6.2 | 10,0 | 12.3 | 147,0 |
| 911.0362 | E7 x E11 | 5.6 | 7.0 | 11.3 | 14,5 | 159,0 |
| 911.0363 | E10 x E12 | 5.9 | 6.8 | 13,5 | 15,5 | 175,0 |
| 911.0364 | E14 x E18 | 7.7 | 9.3 | 17.3 | 21,7 | 215,0 |
| 911,0365 | E16 x E22 | 8.1 | 11.6 | 20.1 | 27,4 | 234,0 |
| 911.0366 | E20 x E24 | 11.3 | 13.3 | 23,5 | 28.2 | 262,0 |
Clé polygonale contre-coudée TORX®
- Torx-E-Profil
- Tête de bague décalée de 75°
- Paroi mince
- Finition mat
- Chrome vanadium
| Marque | |
|---|---|
| tailles |
E10 X E12 ,E14 X E18 ,E16 X E22 ,E20 X E24 ,E6 X E8 ,E7 X E11 |
